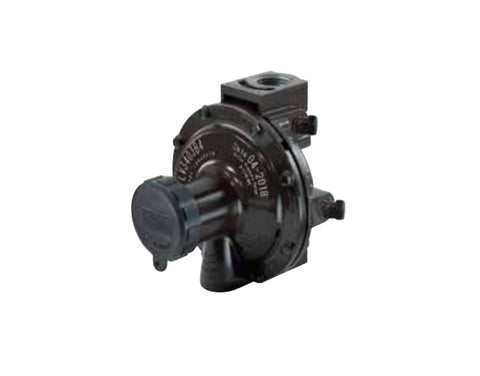

Rego LV3403B4 Series Compact Second Stage Regulator for LP-Gas

Rego LV3403B4 Series Compact Second Stage Regulator for LP-Gas

  • $44.95




BULK ORDERS AND LESS-COMMON PRODUCTS MAY REQUIRE ADDITIONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY AND OTHER PRODUCT OPTIONS.


The LV3403B4 is designed to reduce first stage pressure of 5-20 PSIG down to burner pressure normally 11” w.c. Designed as a second stage regulator for smaller applications with flow requirements up to 450,000 BTU’s/hr, they are ideal for homes, mobile homes, and cottages.



    Part Numbers:

    Part Number Inlet x Outlet Connection Orifice Size Factory Delivery Pressure Adjustment Range Bonnet Vent Position Vapor Capacity BTU/hr Propane*
    LV3403B4 ½” F. NPT 7/32” 11” w.c. At 10 PSIG Inlet 9” to 13” w.c. Inlet 450,000
    LV3403B4V3 ½” F. NPT 7/32” 11” w.c. At 10 PSIG Inlet 9” to 13” w.c. 3:00 450,000
    LV3403B4V0 ½” F. NPT 7/32” 11” w.c. At 10 PSIG Inlet 9” to 13” w.c. Outlet 450,000
    LV3403B4V9 ½” F. NPT 7/32” 11” w.c. At 10 PSIG Inlet 9” to 13” w.c. 9:00 450,000

    * Maximum flow based on 10 PSIG Inlet 9” w.c. delivery pressure
