Siemens LFL1 Oil Burner Control

  • $845.45


BULK ORDERS AND LESS COMMON PRODUCTS MAY REQUIRE ADDITONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY, AND FOR MORE OPTIONS

LFL Burner controls

  • For gas, oil or dual-fuel forced draft burners of medium to high capacity
  • For multistage or modulating burners in intermittent operation
  • With checked air damper control
  • Flame supervision – with UV detectors QRA... – and ionization probe
  • Burner control for oil burners or gas burners conforming to EN 298: 2012
  • Suitable for use with air heaters (WLE)



Accessories:

Available Part Numbers:

  • LFL1.122 - 8 second Purge, 220 VAC,
  • LFL1.122-110 - 8 second Purge, 110 VAC,
  • LFL1.133 - 8 second Purge, 220 VAC,
  • LFL1.133-110 - 8 second Purge, 110 VAC,
  • LFL1.322-110 - 25 second Purge, 110 VAC,
  • LFL1.333-110 - 25 second Purge, 110 VAC,
  • LFL1.335 - 30 second Purge, 220 VAC,
  • LFL1.335-110 - 30 second Purge, 110 VAC,
  • LFL1.635  - 60 second Purge, 220 VAC,
  • LFL1.635-110  - 60 second Purge, 110 VAC,

 *110 V.A.C. Units are North American Approvals, 220 V.A.C. are CE Approved.



Resources:

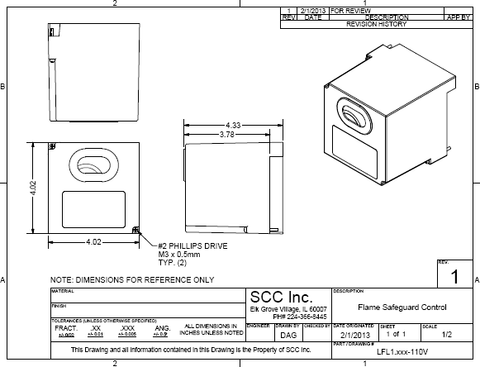

Click to Enlarge:

600171
