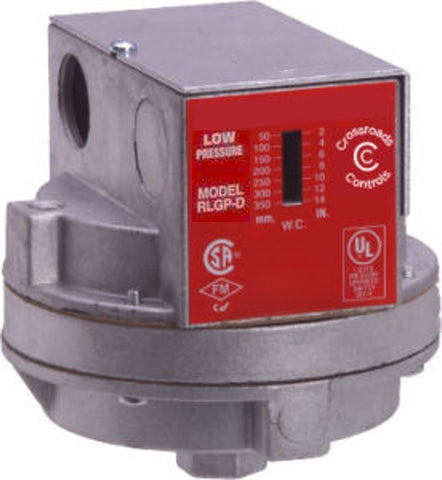

RLGP-D - Low Gas Pressure Switch DPDT - Auto Reset

  • $193.00


Low gas pressure switch with adjustable setpoint and automatic DPDT reset mechanism to trip at falling pressure conditions and reset automatically when conditions return to setpoint



Available Pressure Ranges:

  • 2-14" WC (50-350mm) 803114101 RLGP-D 2-14
  • 10-50" WC (250-1250mm) 803114102 RLGP-D 10-50



Features and Specifications:

  • Manufactured by Crossroads Controls, formerly by Antunes Controls
  • Rugged Die-Cast Aluminum Housing
  • Two circuit control—each setpoint controls two independent, dry contacts to switch to different voltages
  • Approvals: UL, FM, CSA
  • Electrical Ratings:
    • 10A, 1/8HP @ 125 VAC.;
    • 5A, 1/4 HP @ 250 VAC.;
    • Pilot Duty, 125 VA @ 125-250 VAC.
  • Max Surge Pressure: 10 PSI Max
  • Max Ambient Temperature: 140°F / 60°C
  • Min. Ambient Temperature: -40°F / -40°C
  • Connections: 1/4"NPT Gas inlet, 1/8"NPT Gas vent
