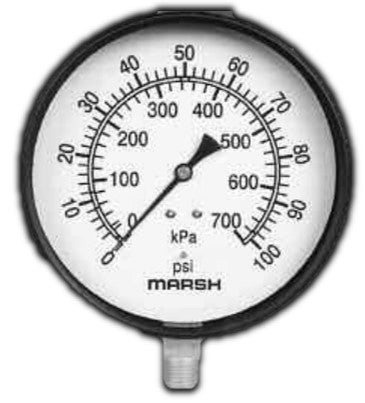

Marsh Bellofram General Gauge - 2" Dial, 1/4" NPT Center Back Mount
BULK ORDERS AND LESS COMMON PRODUCTS MAY REQUIRE ADDITIONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY.
- Dial Sizes 1-1/2", 2", 2-1/2", 3-1/2", 4-1/2" diameter
- Superb quality, economical price
- Available Pressure ranges to 5000 psi
Marsh Instruments General Service Steel Case Gauges are an economical, general purpose gauge for pressure measurement from vacuum/compound through 5,000 psi. Suited for use with water, oil, air, gas, or other non-corrosive media. Typical applications include FRLs, compressors, pumps, boilers, regulators, dryers as well as commercial and industrial equipment.
Marsh General Gauge Specifications:
- ACCURACY
- ASME Grade B–±3/2/3% (±2% of range across middle half of scale) CASE SIZES 1-1/2", 2", 2-1/2", 3-1/2", 4-1/2" diameter
- CASE MATERIAL Steel, black painted
- CASE STYLE
- CB – Center Back Mount
- LM – Lower Mount
- UC – U-Clamp Mount
- TUBE & SOCKET Copper alloy
- MOVEMENT Brass
- CONNECTION 1 ⁄8 & 1 ⁄4 NPT
- RANGES
- 0 to 30" Hg VAC;
- Compound 30" Hg vac to 400 psi;
- 15 to 5,000 psi
- DIAL STANDARD Dual scale psi and kPa
- DIAL COLOR Black markings on white
- POINTER Aluminum, black painted
- WINDOW
- 1-1/2", 2", 2-1/2", 3-1/2": acrylic, twist-in Clearlok
- 4-1/2": flat glass window with steel friction ring
- RESTRICTOR Standard for ranges 1,000 psi and above
