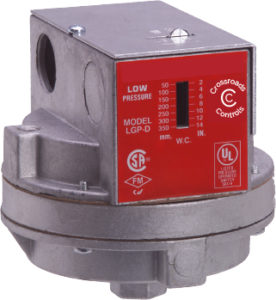

LGP-D - Low Gas Pressure Switch DPDT - Manual Reset

LGP-D - Low Gas Pressure Switch DPDT - Manual Reset

  • $182.45


Low gas pressure switch with , DPDT switch , adjustable setpoint and a manual reset mechanism to trip at falling pressure conditions

There are two Pressure Ranges:

  1. 2-14" WC (50-350mm) 803113901 LGP-D 2-14
  2. 10-50" WC (250-1250mm) 803113902 LGP-D 10-50



Features:

  • Manufactured by Antunes Controls
  • Approvals: UL, ULc, FM, CSA
  • Electrical Ratings: 4A, 1/8HP, 125VAC or 3A, 1/4HP, 250VAC
  • Rugged Die-Cast Aluminum Housing.
  • Max Surge Pressure: 10 PSI Max
  • Max Ambient Temperature: 140°F / 60°C
  • Min. Ambient Temperature: -40°F / -40°C
  • Connections: 1/4"NPT Gas inlet, 1/8"NPT Gas vent

Technical Literature:
