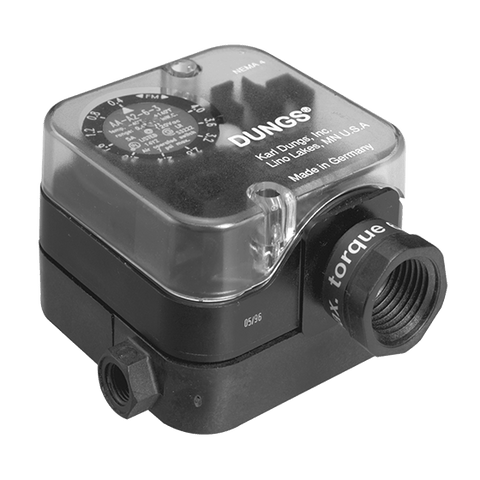

DUNGS AA-A2 DIFFERENTIAL PRESSURE SWITCH

DUNGS AA-A2 DIFFERENTIAL PRESSURE SWITCH

  • $85.00


AA-A2 DIFFERENTIAL PRESSURE SWITCH FOR AIR/FLUE/EXHAUST FLOW

SPECIFICATIONS:

Max. Operating Pressure: 7 PSI (500 mbar)
Electrical: 1-SPDT switch-AC-5A Res./ 3A Ind. - DC min. 20mA @ 24VDC/1A @ 48VDC
Enclosure Rating: NEMA Type 4
Ambient Temperature: -40-140Deg.F. / -40-60Deg.C.
Pressure Connection:
A2-4 - Both: 5/32" (4.6mm) Hose Connections
A2-6 - Both Threaded - Negative: 1/8" NPT - Positive: 1/4" NPT
Approvals: UL / CSA / FM Approved

Accessories:

Resources:





aa-a2- aa-a2-2-6 aa-a2-2-6-3 aa-a2-3 AA-A2-4 aa-a2-3-4 aa-a2-2-4 aa-a2-6-4 266910 266911 266912 266913 266932 266934 266936 266938 267142 267143 267144 267145 691366 d217061a
