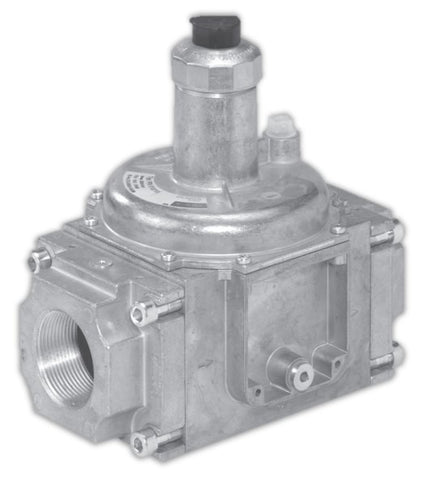

Dungs FRI7../6 Gas Appliance Pressure Regulators with integrated gas filter

Dungs FRI7../6 Gas Appliance Pressure Regulators with integrated gas filter

  • $360.00


CSA APPROVED

THIS PRODUCT REQUIRES ADDITIONAL TIME FOR SHIPMENT. CONTACT US VIA PHONE OR EMAIL TO REQUEST MORE INFORMATION ON AVAILABILITY.

Please call or email for information regarding Part numbers and prices not already listed

The FRI/6 balancing type pressure regulator combines a pressure regulator and a 50 micron gas filter in one housing. Various combinations are possible using the FRI/6 with the most of the DMV shutoff valves for a compact, modular system:

  • Stand-alone pressure regulator and gas filter with threaded flanges, or direct mount to DMV sizes 701, 702 and 703 series safety shutoff valves.
  • Regulator output pressure monitored by direct mounting an A2 type pressure switch. Additional ports to sense inlet and outlet pressure are also located on the threaded flanges.
  • Heavy duty diaphragm construction for durability and strength.
  • Steady, precise and instantaneous regulation of the outlet pressure.

    Specifications:

    • Max. operating pressure: 7 PSI (500 mbar) CE; 5 PSI (360 mbar) CSA
    • Input pressure range: 2 to 200 in. W.C. (5 mbar to 500 mbar)
    • Output pressure range:
      • 4-12" W.C. (10 to 30 mbar) (Standard Blue Spring)
      • Other adjustable Spring Ranges from 1 to 80 in. W.C. (2.5 mbar to 200 mbar); (see accessories below)
    • Gas Filter: 50 micron; replaceable
    • Ambient temperature rating:
      • +5°F to +150 °F for up to 7 PSI for regulating behavior (+/- 10% of setpoint).
      • -40°F to +150 °F: Diaphragms are suitable for the low temperature, but there may be out of range regulating behavior.
      • CSA Certified for -40 °F to +150 °F for up to 5 PSI.
      • -15 °C to +70 °C applies to the CE Marking.

    Accessories:

    Resources:

    Part Numbers and Accessories:

    Part Number Mounts to DMV Type Order Number Size Pressure Max Operating (CSA)
    FRI 705/6 DMV 701 230472 1/2" - 1" NPT 5 PSI
    FRI 707/6 DMV 701 230473 1/2" - 1" NPT 5 PSI
    FRI 710/6 DMV 702/3 230474 1" - 2" NPT 5 PSI
    FRI 712/6 DMV 702/3 230475 1" - 2" NPT 5 PSI

    Flanges:

    Part Number / Description Mounts to DMV Type Order Number Size
    FRI 705/6 -FRI 707/6 Flange DMV 701 222371 1/2" NPT
    FRI 705/6 -FRI 707/6 Flange DMV 701 222368 3/4" NPT
    FRI 705/6 -FRI 707/6 Flange DMV 701 221999 1" NPT
    FRI 710/6 -FRI 712/6 Flange DMV 702 or DMV 703 222369 1" NPT
    FRI 710/6 -FRI 712/6 Flange DMV 702 or DMV 703 222370 1-1/4" NPT
    FRI 710/6 -FRI 712/6 Flange DMV 702 or DMV 703 222003 1-1/2" NPT
    FRI 710/6 -FRI 712/6 Flange DMV 702 or DMV 703 221997 2" NPT
